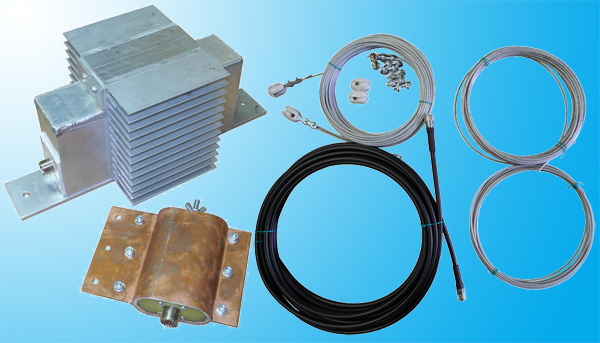

CW.80.1000.LT

10-12-17-20-40-80м

Model CITY-Windom (CW80.1000) CITY-Windom (CW80.1000.LT)
80 m, VSWR not more 1.6 3.5-3.8 MHz 3.5-3.8 MHz
40 m, VSWR not more 1.5 7.0-7.2 MHz 7.0-7.2 MHz
20 m, VSWR not more 1.7 14.0-14.35 MHz 14.0-14.35 MHz
17 m, VSWR not more 1.7 18.06-18.31 MHz 18.06-18.31 MHz
12 m, VSWR not more 1.5 24.9-25.14 MHz 24.9-25.14 MHz
10 m, VSWR not more 2 28-29,5 MHz 28-29,5 MHz
Impedance, Ohm 50 50
Connector SO-239 SO-239
aximum power while transmitting less than 1 min. * W 1000 (PEP) 1000 (PEP)
Max power during operation transmission: reception 1: 3, W 300 1000
TX with 100% cycle at 1000 W not allowed allowed
Length, m 46 46
Polarization horizontal horizontal
Weight, kg 4,95 7
