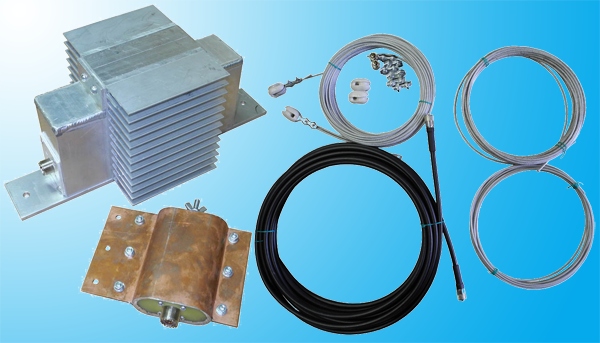

CW160.1000
Описание
Model CW160.1000 CW160.1000.LT
160 m 1,8-1,95 MHz 1,8-1,95 MHz
80 m 3.5-3.8 MHz 3.5-3.8 MHz
40 m 7.0-7.2 MHz 7.0-7.2 MHz
20 m 14.0-14.35 MHz 14.0-14.35 MHz
17 m 18,068-18,168 MHz 18,068-18,168 MHz
15 m 21,0-21,45 MHz 21,0-21,45 MHz
12 m 24,89-25,14 MHz 24,89-25,14 MHz
10 m 28-29,7 MHz 28-29,7 MHz
VSWR not more 2 2
Impedance, Ohm 50 50
Connector SO-239 SO-239
Maximum power while transmitting less than 1 min. * W 1000 (PEP) 1000 (PEP)
Max power during operation transmission: reception 1: 3, W 300 1000
TX with 100% cycle at 1000 W not allowed allowed
Length, m 80 80
Polarization horizontal horizontal
Weight, kg 8.3 10
